CABLER TWISTER

What is Direct Cabling?

Direct cabling is an innovative approach to creating multifold torque balanced filament yarns. It is a single-stage process in which two yarns are wrapped around each other without imparting turns or twist to the single yarns.

Direct Cabling is used in the production of BCF (Bulked Continuous Filament) Carpet Yarns. It offers good covering capacity, thus higher productivity.

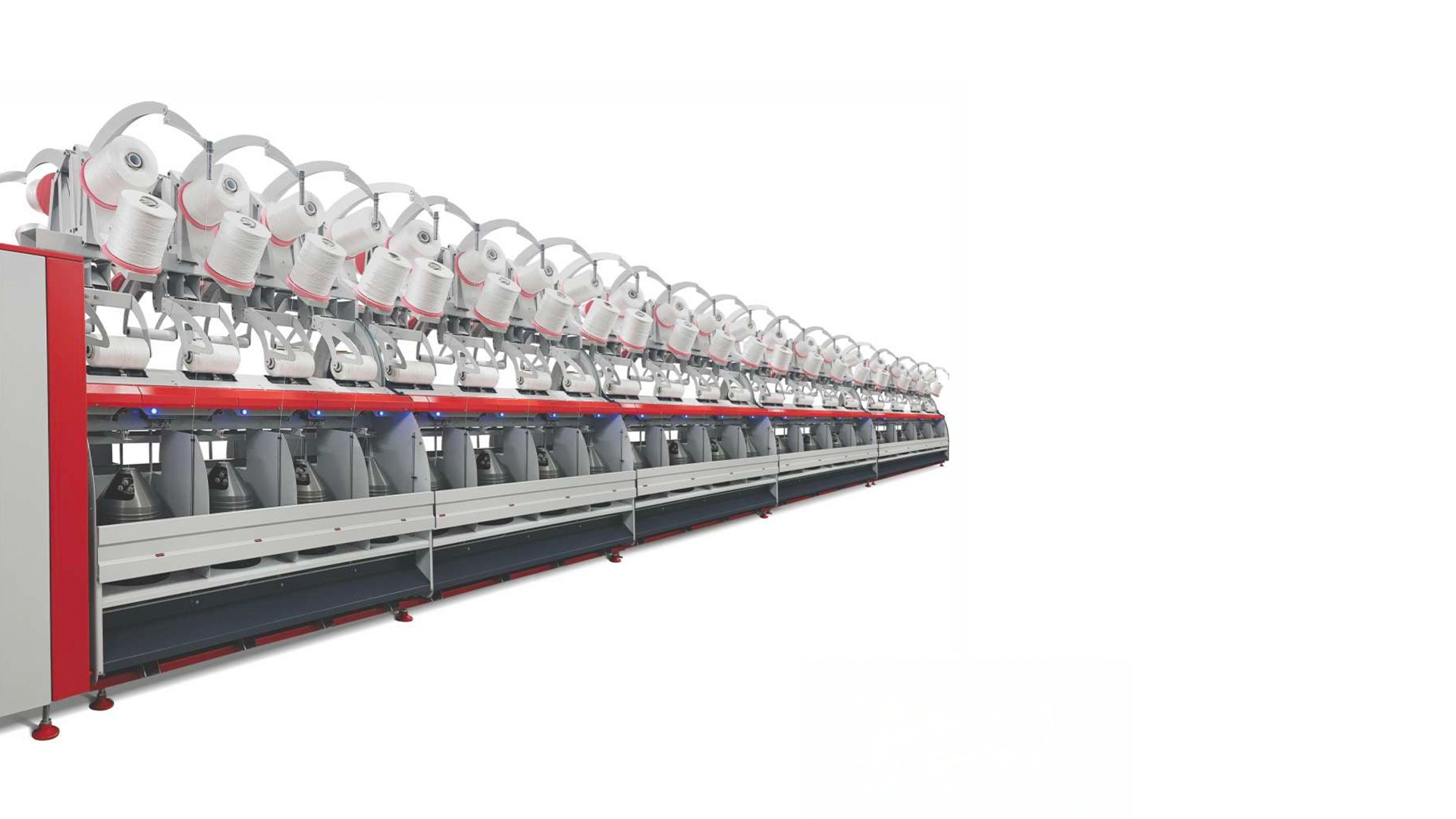

Keeping our focus on what customer wants and our Passion for Innovation and Futuristic twisting solution we developed carpet cabler which is fully Automatic and loaded with all features,'

•⁠ ⁠Lowest Energy Consumption

•⁠ ⁠High on Productivity

•⁠ ⁠Easy to operate

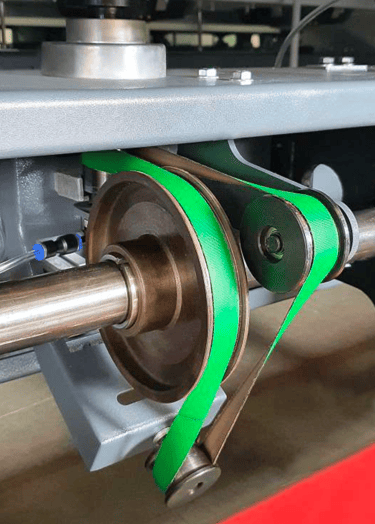

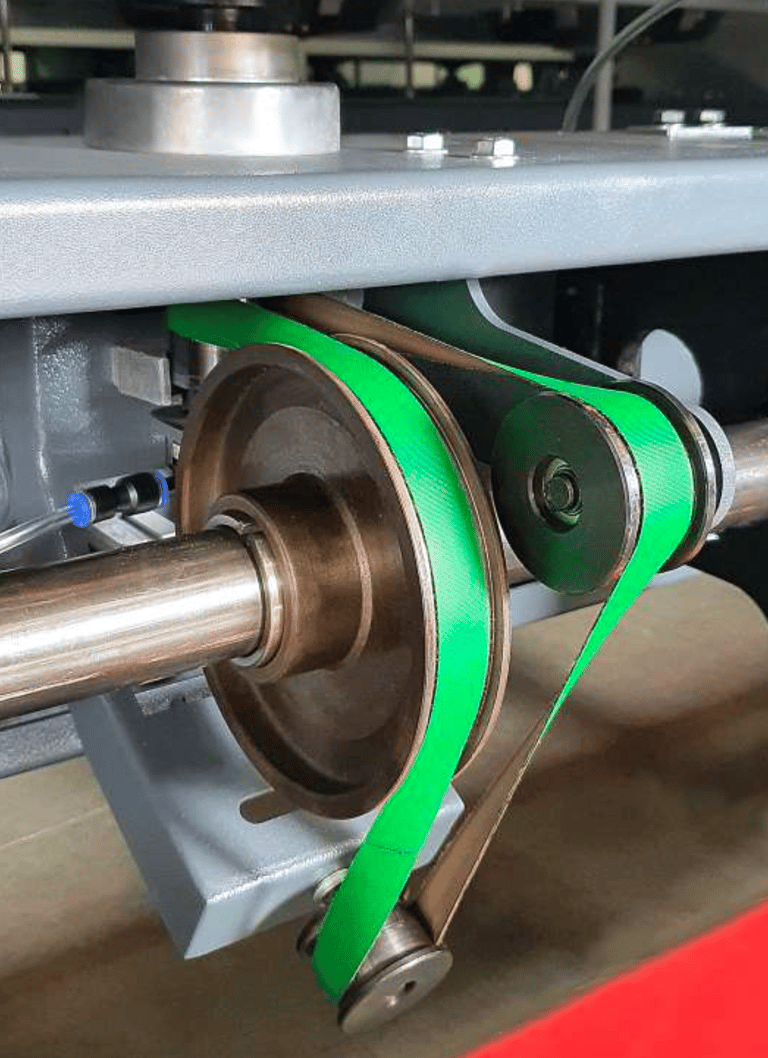

INDIVIDUAL SPINDLE TAPE DRIVE SYSTEM

•⁠ ⁠Fully Inverter Control Drive

•⁠ ⁠Individual Spindle Tape Drive System is designed to provide absolute reliability and ensures precisely synchronized running of all the driven spindles.

•⁠ ⁠Individual Spindle Tape Drive System not only contributes to the saving of electricity it also ensures that all of the driven spindles run precisely synchronised.

•⁠ ⁠Individual Spindle Tape Drive System allows

Automatic Spindle stop in the event of yarn break for that particular spindle.

•⁠ ⁠Further due to Individual Spindle Tape Drive System higher speed and Higher denier can be achieved, means high Efficiency.

•⁠ ⁠Due to Individual Spindle Tape Drive System Any spindle can be shut down via multifunction switch adding to reduce wastage and production control.

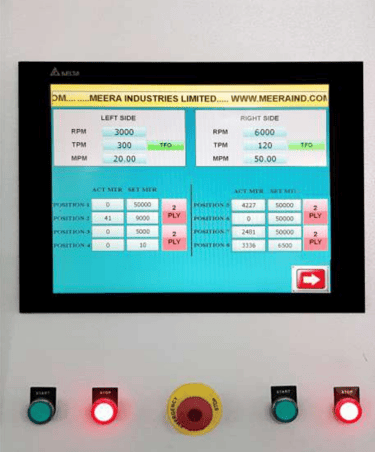

EASY TO OPERATE BUTTONS/PANELS

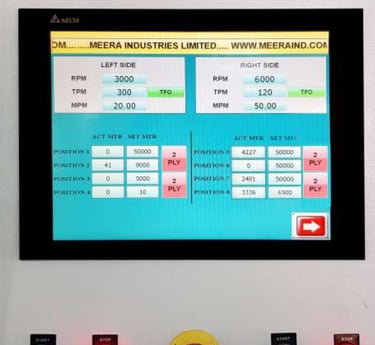

Touch panel for easy to adjust parameters like amount of twist, spindle speed, crossing angle length and time-based shut-down, individual length counter etc.

The production parameters entered can be stored in an Article library and called up whenever required. Advance Reporting available like, delivery speed, operating hours, Spindle wise breakage report, production, operator

Efficiency etc. The computer is equipped with a usb Connection.

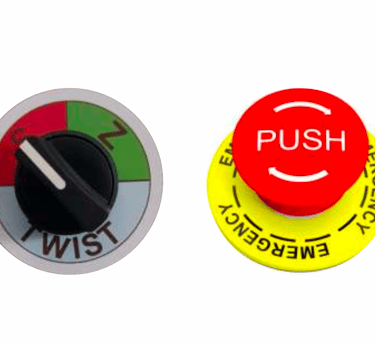

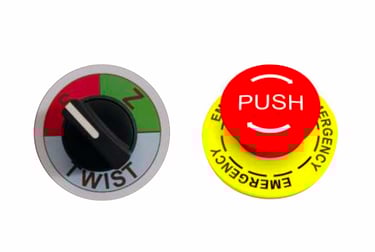

•⁠ ⁠Easy to operate Buttons on the face of machine.

•⁠ ⁠Stop button

•⁠ ⁠EMERGENCY STOP mushroom button

•⁠ ⁠Pressure indicator For Air Threading

•⁠ ⁠S/Z Twist Switchover Button
