COVERING MACHINE

CM-500

The CM-500 is a double-deck covering machine engineered for elastic and technical yarns such as Lycra, spandex, rubber and glass fiber. Designed with hollow spindles, it integrates:

A high-precision traverse, tapering device and lip motion unit for consistent package formation.
Open-arm type take-up cradle, mounted on ball bearings for optimal yarn alignment.
Available with mechanical, semi-electronic, or fully electronic control systems, tailored to your production setup.

Expanded Technical Specifications

Double

225 mm

Tangential belt

20,000 RPM

Up to 60 m/min

150 to 4,500

Covering Type

Number of Decks

Spindle Gauge

Spindle Drive

Max Working Speed

Take-Up Speed

Wraps per Meter

Wharve Diameter

Traverse Length

Tube Length

Tube Diameter

Max Bobbin Diameter

Core Yarn Feed

Cover Yarn Feed

25mm

152 mm

172 mm

63 mm (cylindrical)

180 mm

Bobbin width up to 115 mm or cone Ø up to 220 mm

Double-flanged bobbin type

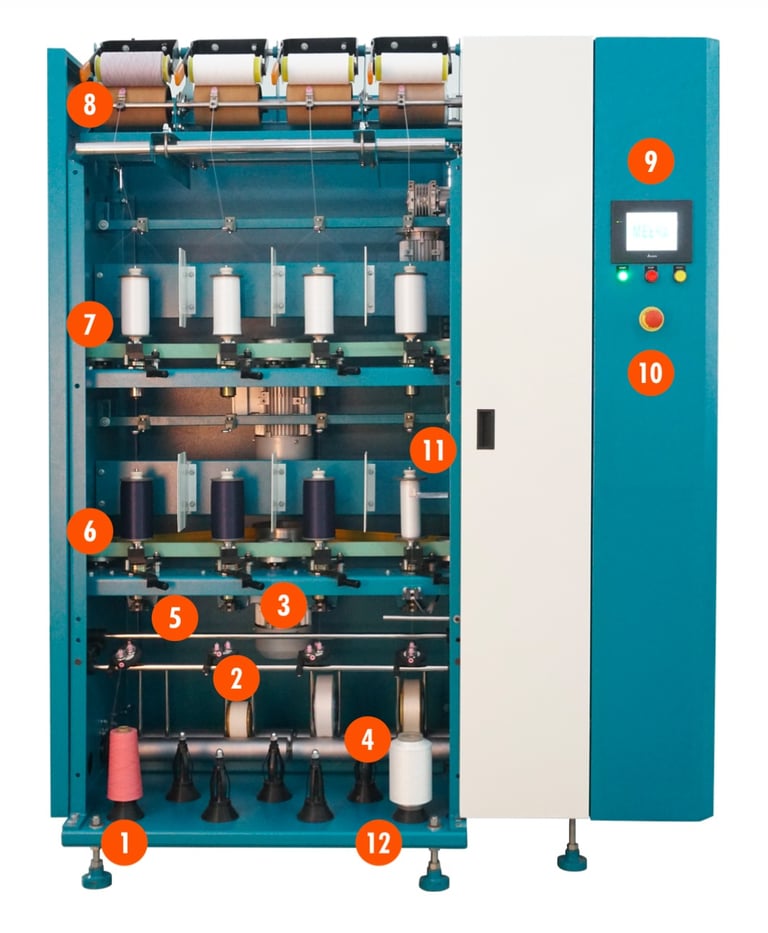

Core Yarn Bobbin Holder For Viscose, Glass, Any Spun for Filament Yarn

Yarn Tension Guide

Spindle Brake

Rollers for Holding Lycra Yarn

Sensor Cutter (Optional)

First Covering Spindle

Second Covering Spindle

Final Take-Up Drum with Rubberised cork sheet.

Control Panel

Safety Switch

Bobbin Rewinder

Feed Package for Bobbin Rewinding
