Key Features

• Best Rope Finishing.

• Maximizing Output / Production.

• Excellent Quality Twist.

• Special Rigid Designs Of The Machines.

• Less Noisy Pollution.

• Less Power Consumption.

• Anti-Twisting Unit.

• Capacitive Touch User Friendly Screen Display With PLC Control.

• All Parameters Will Be Shown On Display.

• RPM/TPM, Twist Factor Adjustment By Display.

• Denier & Twisting Calculator In Display.

• Inbuilt Maintenance Guide.

• Door Location Warning.

• Machine Lubrication Warning.

• A.C. Drive Fault Alarm Indication in HMI.

• Recipe Storage Facility.

• Daily, Weekly & Monthly Report System. (Direct Save In Excel Format)

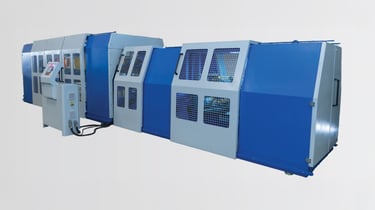

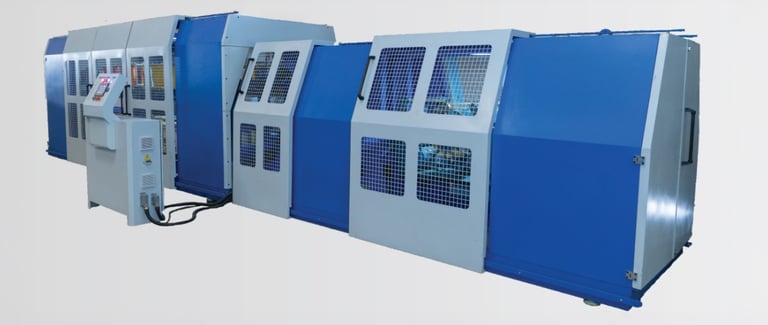

ROPE MAKING MACHINE

OPTIONAL Features

• Feeding Capstan Mechanism.

• Elec. Wire Hoist (Wire Crane) for removal of final package.

• WI-FI Connectivity System for Computer.

• Direct Coiling Head.

PRODUCT USAGE

Sr. No. Model No. Standard & PLC based

1 APPL / 48 / 3 / 18 YES YES

2 APPL / 48 / 3 / 24 YES YES

3 APPL / 48 / 4 /24 YES YES

4 APPL / 612 / 3 / 30 YES YES

5 APPL / 612 / 3 / 30 YES YES

6 APPL / 612 / 3 / 36 YES YES

7 APPL/ 612 / 4 / 40 YES YES

8 APPL/ 612 / 4 / 48 YES YES

9 APPL/ 816 / 3 / 48 YES YES

10 APPL/ 816 / 3 / 60 YES YES

11 APPL/ 816 / 4 / 64 YES YES

12 APPL/ 8/ 6/ 4/ 80 YES YES

4 - 16 mm

No. Pile Rope Sizes No. of Bobbins

3 4 to 8 mm 3 x 6 = 18

3 4 to 8 mm 3 x 8 = 24

4 4 to 8 mm 4 x 6 = 24

4 4 to 8 mm 4 x 8 = 32

3 6 to 12 mm 3 x 10 =30

3 6 to 12 mm 3 x 12 =36

4 6 to 12 mm 4 x 10 =40

4 6 to 12 mm 4 x 12 =48

3 8 to 16 mm 3 x 16 =48

3 8 to 16 mm 3 x 20=60

4 8 to 16 mm 4 x 16=64

4 8 to 16 mm 4 x 20=80
