Control Panel

At the winding head for individual position start/stop, manual changeover, and mandrel locking/unlocking. The integrated LEDs indicate the position status.

Modular design, Individual motor and individual position metre counting control system with, safety features.

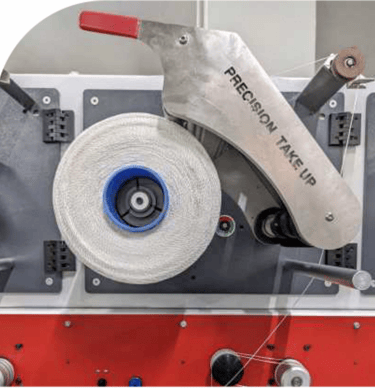

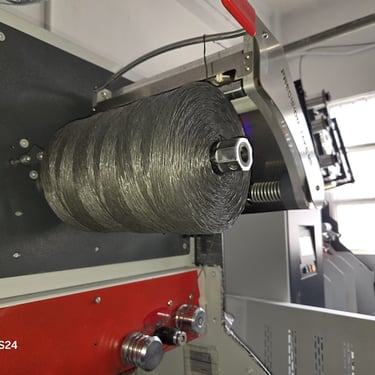

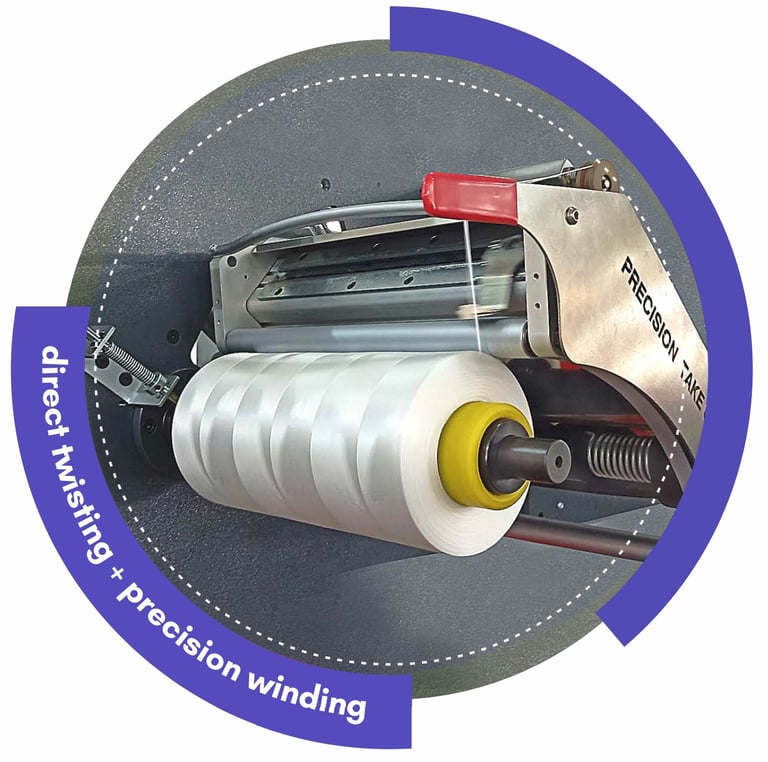

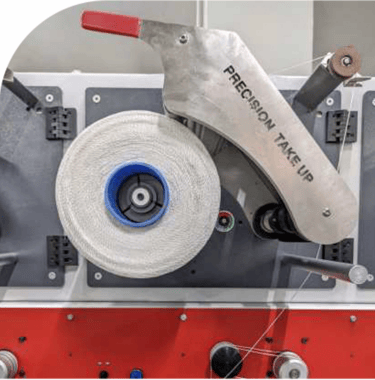

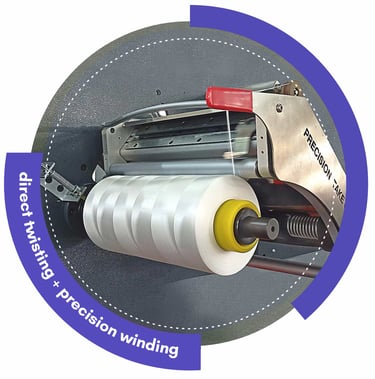

High Precision

Wound bobbin. This precision winding helps to reduce waste, increases the efficiency and consequently productivity at post processing stages in technical textiles processes.

Constant tape tension, adjustable Spring Pressure Mechanism, precise winding ratio, are important feature.

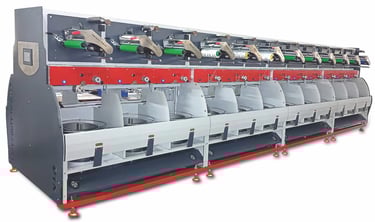

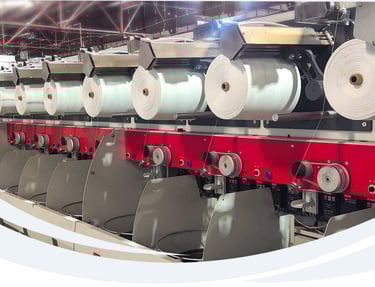

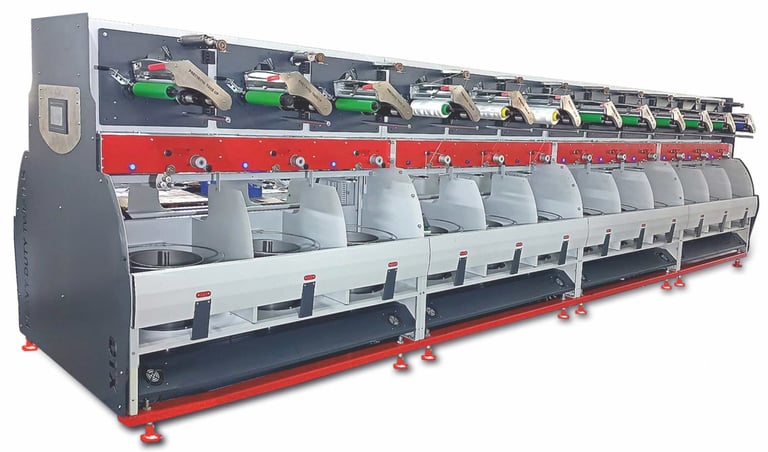

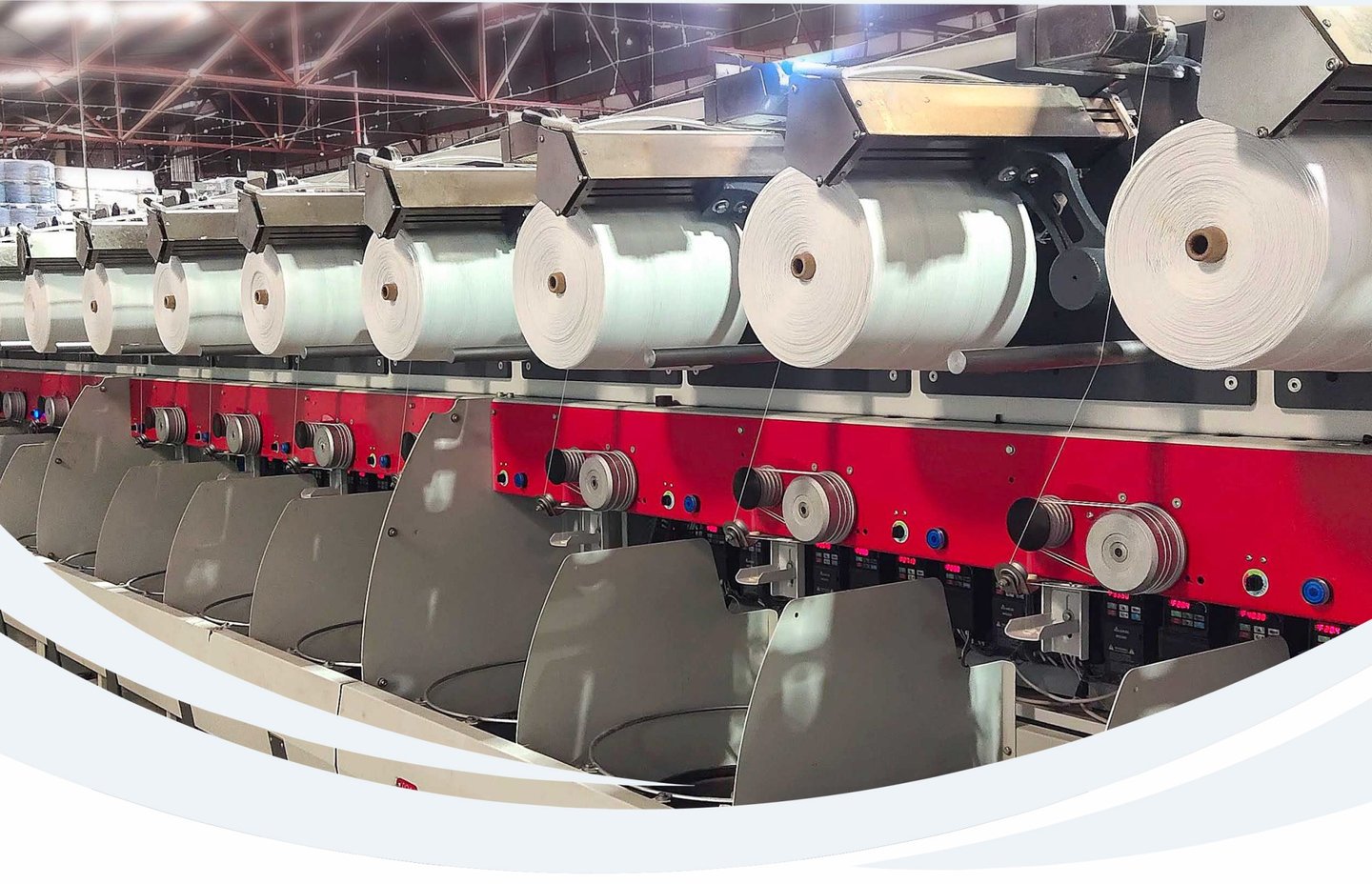

Twisting & Winding

Options. Wide Range of models available for Single Two For one Twisting and One Step S/Z Twisting (TPRS) for Sewing Threads, Twines, Cotton Twines Fishing Twines etc.

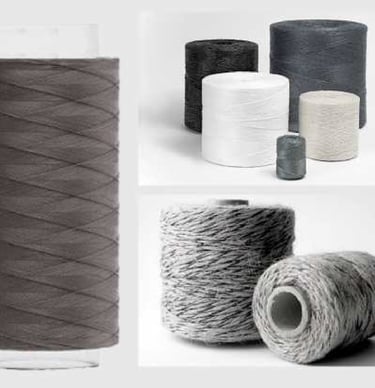

Take-up Package available in interchangeable conical and parallel shape.

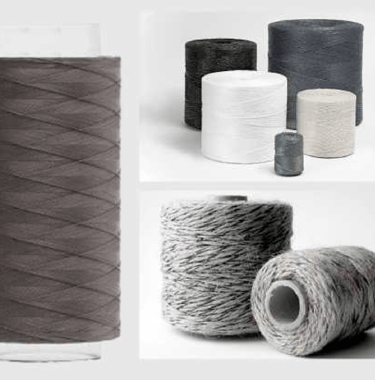

Wide Rnge of Yarn

Application. Fibrillated, Non Fibrillated, PP Tapes, PE Tapes, Multi filament yarn made from PA, PES, PP, PE, Monofilmanet Yarns Aramid Yarns, Staple Yarns Hybrid Yarns etc.

Yarns for sewing Threads, Technical Textiles, artificial grass, baler twine, cotton twine etc.

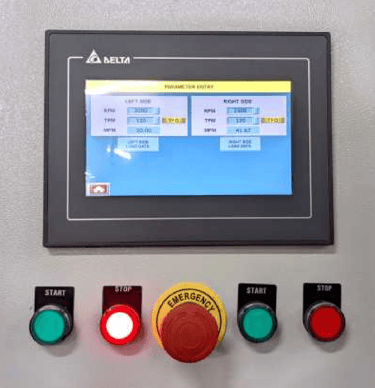

The New Human Machine

Graphical user interface allows to control, monitor and analyse the individual Position. Recipe can be stored with parameters like TPM, Winding Tension, Speed, Overfeed Ratio, etc.

Tapering, Package diameter, Package density, Soft edges, Package metering, for Take-up package.

HIGHLIGHTS

• High speed twisting and Precision winding

• Excellent package quality

• Low energy consumption

• Increased post processing efficiency

• HMI with graphical user interface

• State-of-the-art frequency converters

• Centrally / Individual adjustable tape tension

• Automatic motor switch-off

• Lubrication-free traverse system

• High safety standards and CE certification

• Integrated engineering for longer lifetime

• Simple maintenance

• Reduced labour costs

• Reduced waste
